Description

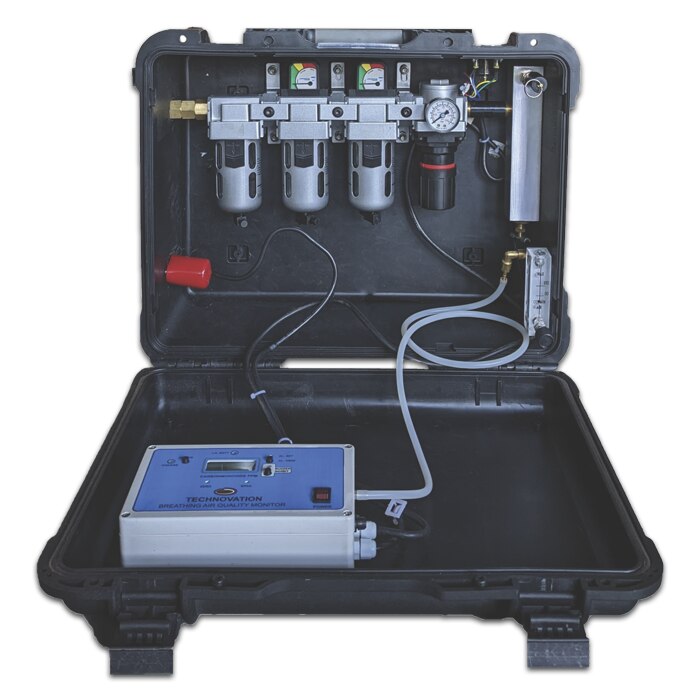

GRADE-D Ait Filtration Systems
Advanced supplied air systems with built in CO monitor with portable design
High Performance Portable Grade-D Air Filtration System are designed to provide
breathing air for a specific number of workers.
Compressor system
The system filters in-coming air from a compressor to provide respirator users with Grade-D quality air and monitors for CO and/or Oxygen.
Auto drain
The first stage element, filters suspended fine particles and particulate and has an auto drain.
The second stage coalescing filter eliminates atomized oil mist, ultra-fine particulates and has an auto drain.
The third stage filter removes organic vapors and odors & has a manual drain.
Filtration efficiency
Filter change indicators are standard on all three stages of filtration.
Filtration efficiency is 99.99% @ 0.01 micron.
Airline monitor
The standard Carbon Monoxide (CO) airline monitor operates on 9-volt batteries or 220 VAC for continuous air monitoring.
An external audible alarm and light signals high CO content.
Point-of-Attachment
Point-of-Attachment (POA) boxes can extend respirator usage beyond 300 feet.
Includes safety relief valve, visual air flow meter to monitor, manifold drain valve, remote alarm jack, 0-160 psi pressure guage.
Permanent Mountable model all components are mounted on powder coated steel panel.
Capacity max 50CFM-4 coupling, inlet pressure 150 psi.
